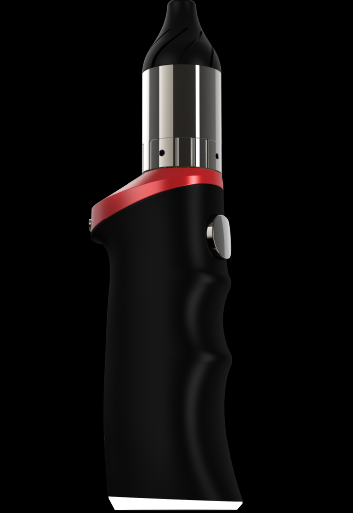

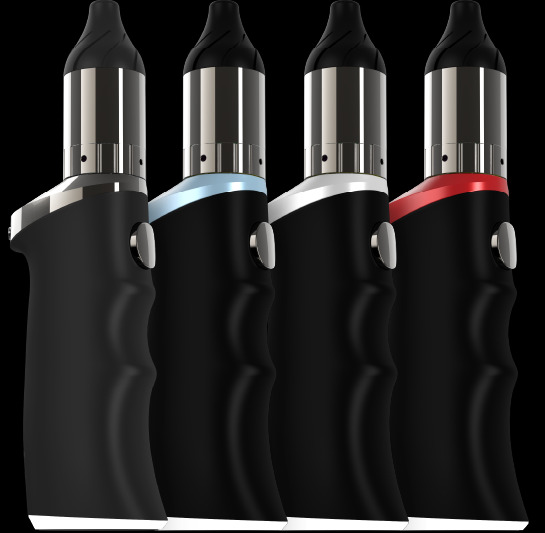

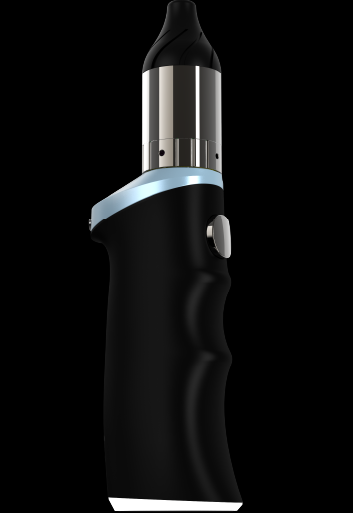

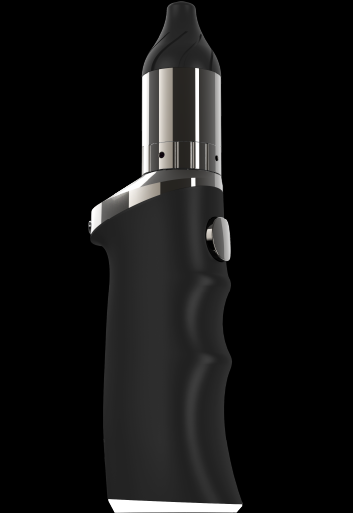

Finish

Jet Black

Sky Blue

Silver

Red Hot

Price
$65
Settings
  • High resolution:

    1-degree increments

    LED
    COLOR

    Mapped To
    Temperature

    Blue Blaze (400°F-487.5°F)

           Optimal flavor, minimal vapor output.

    Green Inferno (487.5-575°F)

           Equilibrium of taste and vapor.

    Red Hot (575°F-662.5°F)

           Intense vapor coupled with rich flavor.

    Ultra White (662.5°F-750°F)

           Maximum vapor, ideal for larger dabs.

Size and Weight

Height 5.53 inch (140.5 mm)

Width: 1.73 inches (44 mm)

Depth: 1.12 inches (28.6 mm)

Weight: .26 pounds (120g)

Mouthpiece

Diameter: 8.71 mm

Display
Line Of Sight
All‑screen OLED display
64‑by‑32-dots resolution at 146 ppi

The ACE display has rounded corners that follow a beautiful curved design,
and these corners are within a rectangle. When measured as a rectangular shape,
the screen is .49 inches diagonally (actual viewable area is less).

Controls
Auto mode:

Double-press power button.

On-demand mode:

Hold power button.

Change Temperature:

Press or hold plus or minus.

Change Duration:

Press the power button and down button simultaneous.
Use up or down button to set your desired duration.

LEDs

Number Of Leds: 3

Number of Colors: 7

Number Of Lumens: 385-771mcd

External Buttons and Connectors

Main button: Tactile button

Secondary buttons: Tactile button

Charging port: USB-C

Coil: 510 universal thread

Coil cover: Magnetic

Mouthpiece: Pressfit

Sensors
  • Thermocouple
Power and Battery

400°F-487.5°F
Up to 100 hits

487.5°F-575°F:
Up to 70 hits

575°F-662.5°F:
Up to 45 hits

662.5°F-750°F:
Up to 35 hits

Model:
  • Built‑in rechargeable lithium‑ion battery 1800mAh
  • Charging via USB to computer system or power adapter

    (available-separately)

2.5 Charge time.
Built-in Features
Materials

Body: Polymer composite

Grip: Anti-slip silicone

Mouthpiece: Heat diffusing silicone

Splash guard: Ceramic silicone

Button and Light Ring: Polymer composite

510 thread: Stainless steel

Bottom: Anti-slip silicone

Operating System

Version: OS Ignite1

In the Box
  • Phaser ACE (TGT coil pre-installed)
  • Extra TGT Coil
  • Pick Tool
  • 4 Feet Type-C USB Cable
  • Cleaning Brush
  • Instructions Manual
Instructions
Load

   Remove mouthpiece, place concentrate into the coil and reattach.

Power On

   Quickly press the button five times.

Choose Setting
Change Temperature:
   Press or hold plus or minus.
Change Duration
   Simultaneous press the button and down button.
   Use up or down buttons.
Choose Mode
   Auto-mode

   Quickly double-press button and inhale.
   On-demand mode
   Hold button and inhale.

Power Off

   Quickly press the button five times.

Pro Tips

Change Units Of Temperature
Simultaneously press the up and down buttons.

Turn Off RGB
Quickly triple press power button.

Reset Puff Counter
Simultaneously press the power button and up buttons.

Coil Connection

Depth: 9.4 mm

Diameter: 12.5 mm

Temperatures: 400°F‑to‑750°F

Resistance Range: >0.30 Ω

Type: Universal 510 thread

Flow direction: Upwards

Flow outlet: Top opening

Maintenance
  • Change water often.
  • Clean coil often of unwanted residue with Q-tip and isopropyl alcohol or preferred solvent.
  • Clean underneath the coil and the airway between the coil and the glass percolator.
  • To stay already, and have the best experience charge regularly via USB-C or wireless.
System Requirements
    • Compatible coil (Two coils are included)
    • Water for percolator
    • Regular water renewal
    • Regular charging
    • Regular cleaning
Environmental Requirements
Operating ambient temperature:

32° to 95° F (0° to 35° C)

Nonoperating temperature:

−4° to 113° F (−20° to 45° C)

Relative humidity:

5% to 95% noncondensing

Operating altitude:

tested up to 10,000 feet (3000 m)

Safety Warning & Instructions

Please read information carefully before using the product and keep it in a safe place

Safety Warning


  • Do not expose the device to extreme     temperatures.
  • Do not charge your battery through a car.
  • Do nots over charge or charge unattended.
  • Do nots use the device while charging.
  • Do nots disassemble the device or change the battery.
    • Contact your direct seller or Yocan manufacturer for after-sale support:
    • www.yocanblack.com
    • service@yocantech.com
    Protection
    • Safety Cut off: The white light will flash 10 times and stop working when the device heating continuously for more than 30 seconds. No coil: White light flashes 3 times. Short-circuit: Red light flashes 5 times. Low battery: Red light flash 10 times and stop working.
    Caution
    Keep the device away from any environment involving strong acids, alkaline, combustible materials, water, or any other liquids. Do not keep in hot cars or store above the room temperature of 74F. Do not use damaged batteries. If the battery casing is damaged, discontinue use and safely recycle the battery. Do not use the battery if contacts become exposed to solid or liquid matter. Shorts can result in fire or an explosion of a battery. Do not touch coils when hot. Severe burns can result in. Do not touch hot material. Severe burns can result in. If the device gets too hot in use, please stop using it for a while. Not for use with nicotine or other nicotine salt products. Not an ENDS device
    Disclaimers
    People under 21 years of age are not permitted to purchase or use this device. Non-smokers, children, and women breastfeeding should not use this product. The device is not a medical device and is not intended to diagnose, cure or prevent any diseases or other conditions. The manufacturers and sellers will not be responsible for any consequential or incidental damage resulting from the sale or use of any merchandise.
